Material Data : |
UL Approved Nylon PA 6 (Flammability UL 94V-2).
|
|
Ashwin black PA conduit are suitable for outdoor use have been subjected to UV light exposure and water immersion same as UL746C(f1) rating.UV (Irradiance 340nm.) exposure is performed by using a xenon-arc weatherometer for 1000 hours and water spray.
|
Working Temp: |
-40 °C to 105 °C (-40 °F to 221 °F).
Short-Term to 150 °C (302 °F).
|
Application: |

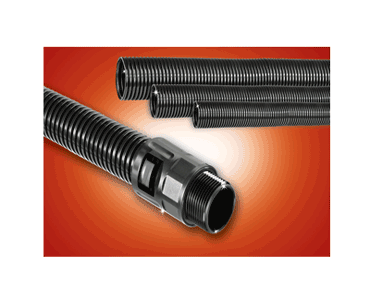

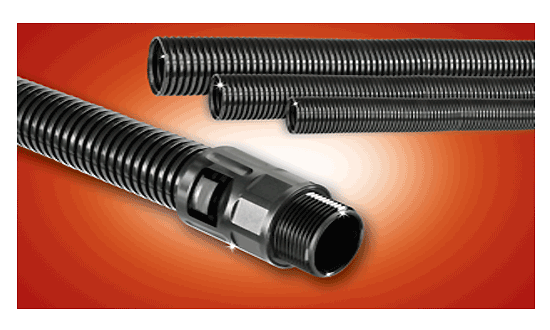

The refined flexible polyamide conduit system which provides the great mechanical properties of ingress protection/ compression strength/ pullout force/ motion stress/ high impact and long wearing life, and the excellent performance of weather/ chemical resistances(like fuels, minerals oils, gasoline, alcohol, grease salt water, alkalies, weak acid and common solvents etc). From Ashwin's widest varieties of size ranges (Ømm - Ø100mm), the high-grade nylon corrugated conduit are the best non-metallic where protections and insulations widely used in outdoor/ indoor applications of mechanical engineerings, automations, medical equipments, electrical and electronics technologies, telecommunications, wireless networking ODUs, data links, power supplies, junction boxes, solar PV modules, inverters, lightings, displays, traffics, signal systems, surveillance & security measurings, Sensors, railway coaches, airports, infrastructural projectsandany kinds of equipments. |
|
